- These Pumpsets are designed to be used to pump water from borewells and are available in multiple sizes from 3 inch (V3) to 10 inch (V4).
- Borewell Submersible Pumpsets are available in Radial Flow type and Mixed Flow type.
- Radial Flow type is suitable for requirements with high lift but low discharge while Mixed Flow type is suitable for low lift high discharge.
- Borewell Submersible Pumpsets consists of Electric motor and Pump coupled together.
- The Pump consists of stack of Stages with each stage comprising a set of impeller and diffuser.
- When it operates the stages lift the water to the top.
- These Pumpsets are suitable for use in homes, Agriculture and Industry.
- Water lubricated motor with easily rewindable stator.
- Suitable for 340 – 440 V Three Phase 50 Hz power supply.
- Corrosion resistant stainless steel stator casing.
- Energy efficient radial and mixed flow models.
- Leaded bronze Impellers.
- Rigid cast iron housings, bowls, valve casing and inlet bracket.
- Customized pumpsets are available on request.
LIST OF PRODUCTS
5″, 6″, 7″, 8″, 10″ Borewell Submersibles
Efficient, effective, reliable TEXMO Borewell submersible pumpsets are the life line of an Indian farmer, solves the ground water requirements in agriculture sector with high efficiency. Pumps water from bores of diameter 5”, 6″, 7”, 8″ & 10″ and above
| Bore size min. | 5″ | 6″ | 7″ | 8″ | 10″ |
| Power | 5.0 to 10.0 HP | 2.0 to 20.0 HP | 7.5 to 12.5 HP | 5.0 to 50.0 HP | 20.0 to 50.0 HP |
| Speed | 2850 RPM | 2880 RPM | 2880 RPM | 2900 RPM | 2900 RPM |
| Motor Type | CT | ST | ST | ET | ET |
| Pump Type | MC | RS, AT, MS, SRS | MP | RE, ME | MT |
| Head max. | 65 M | 470 M | 59 M | 270 M | 66 M |
| Discharge max. | 800 LPM | 1600 LPM | 1700 LPM | 2200 LPM | 3900 LPM |

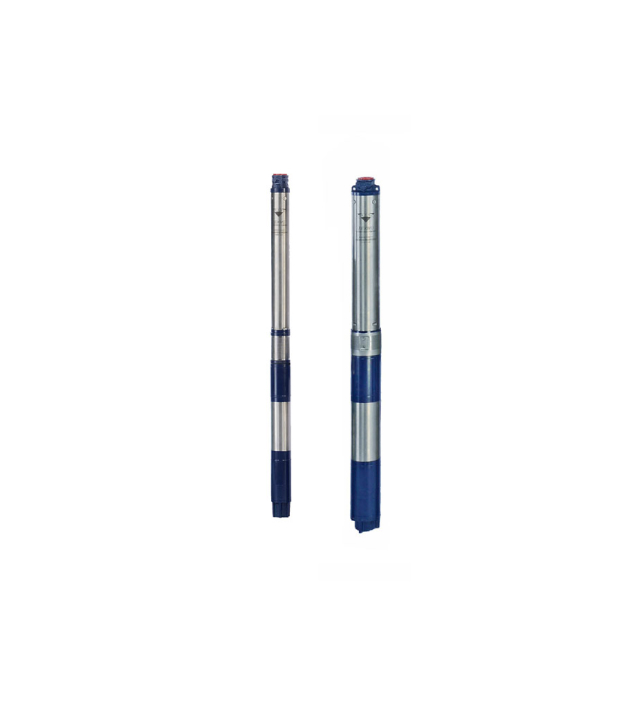

3″, 4″ Borewell Submersibles
Rugged and efficient, TEXMO 3” & 4″ Borewell Submersible Pumpsets are the ideal solution where water requirements are substantial and expenditure on power a major consideration
| Bore size min | 3″ | 4″ |
| Power | 0.75 to 1.0HP | 0.5 to 6.0 HP |
| Speed | 2850 RPM | 2850 RPM |
| Motor Type | JTS | FS, JFS, FT, JFT |
| Pump Type | JRT | RF, JRF, HRF, MF, JMF, HMF, |
| Head max. | 83 M | 371 M |
| Discharge max. | 5500 LPH | 30000 LPH |
- Three phase water-filled submersible induction motor with easily rewindable stator.
- Suitable for Three Phase, 340 – 440 V, 50 Hz power supply.
- Rigid cast iron motor frame, impeller and volute casing.
LIST OF PRODUCTS

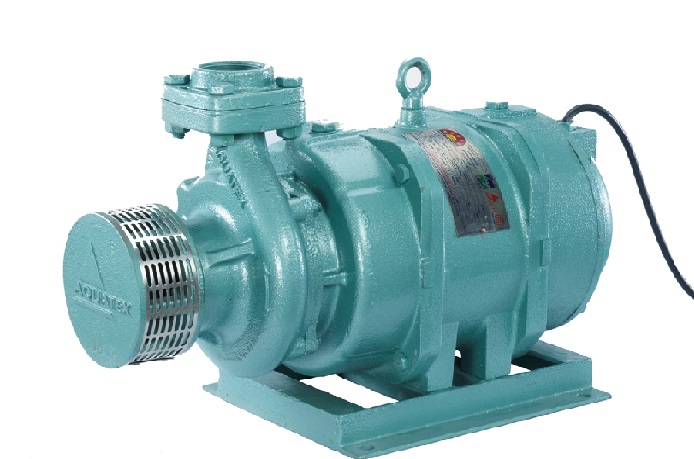

Openwell Submersible Pumps - ASM, ASM N Series
ASM, ASM N openwell submersible pumps offer the convenience of not having to change the position of the pump with changing water levels in the well. They are rugged and efficient.
| PRODUCT DATA | |
| Power | 3.0 HP to 15.0 HP |
| Speed | 2900 RPM |
| Head Max. | 66 M |
| Discharge Max. | 2070 LPM |
- Rugged Single Phase TEFC construction.
- Suitable for 200- 240 V, 50 Hz power supply.
- In-built thermal overload protector.
- Rigid cast iron casing and motor frame.
- Sturdy bronze / Stainless steel impellers.
LIST OF PRODUCTS

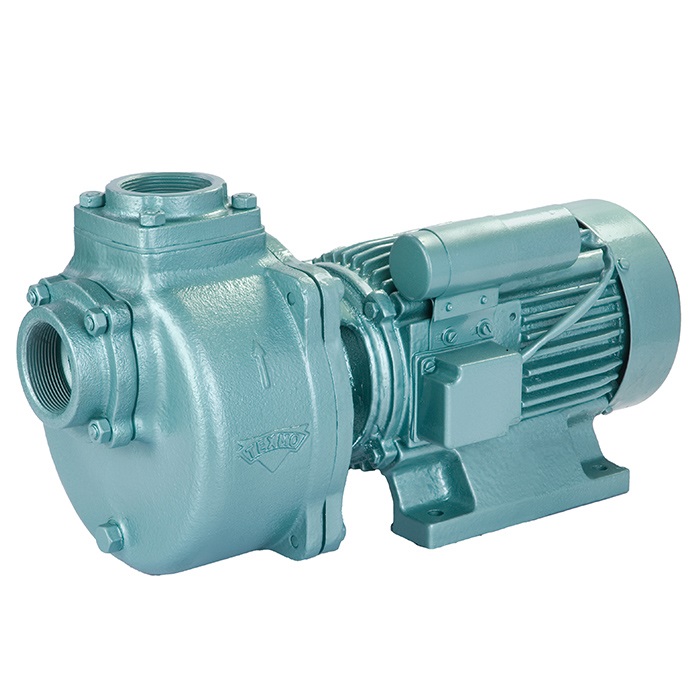

Single Phase Centrifugal Monoblock Pumps- ACS Series
Rugged and Reliable Self Priming Centrifugal Pumps where the water requirement is fairly high. High efficiency with lower power consumption than other types of small self priming pumps.
| PRODUCT DATA | |
| Power | 3.0 HP to 15.0 HP |
| Speed | 2900 RPM |
| Head Max. | 66 M |
| Discharge Max. | 2070 LPM |
- Totally enclosed fan cooled motors.
- Suitable for 340-440V Three Phase 50Hz power supply.
- Dynamically balanced rotors.
- Vibration free and noiseless operation.
- Heavy ball bearing to take higher thrust load.
LIST OF PRODUCTS

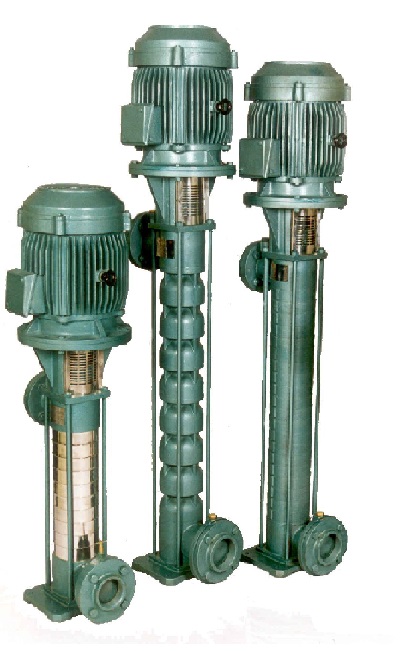

High-Pressure Vertical Multistage Pumpset - AVRS, AVRE & AVMS Series
High pressure vertical multistage pumpsets are reliable and rugged in construction. They have proven their performance over many decades. A wide variety is available to suit high-pressure applications.
| PRODUCT DATA | |
| Power | 3.0 to 20.0 HP |
| Speed | 2900 RPM |
| Head Max. | 300 M |
| Discharge Max. | 60 m 3 / hr |
- Compressor pumps are pumps which utilizes air to push water from the borewell to the surface.
- The Compressor Pump consists of the pump connected to a air hose which goes down to the bottom connecting to a air distributor.
- The air distributor is connected to a perforated delivery pipe which allows water to come in.
- It works on the idea that when compressed air pumped into the bore and distributed into the perforated delivery pipe, the very fine air bubbles mix with the water thus lowering their density and lifting the air water mixture through the delivery pipe to the surface.
- Efficient Motors.
- High-Quality Compressors.
- Our High HP pumpsets can be used to pump water from two bores simultaneously.
- High-Quality Air distributor creating fine air bubbles.
- High-grade belt to withstand wear and tear under field conditions.
- Suitable for Borewell Pumping for homes and offices.
- It can also be used for Gardening purposes.
LIST OF PRODUCTS

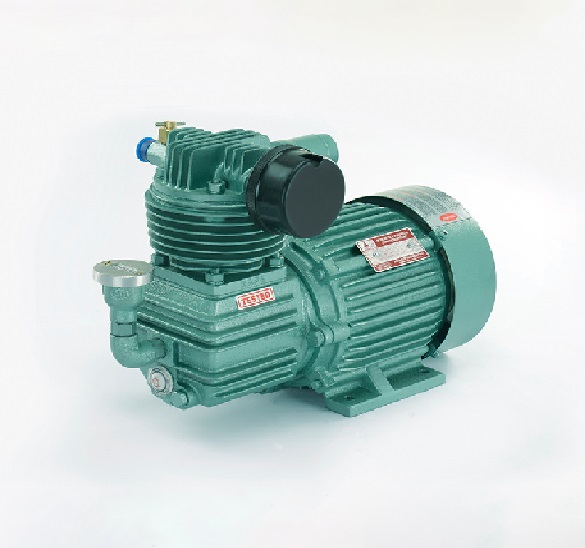

AMC (Aquatex Mono Compressor Pumps)
MONO COMPRESSOR PUMPS are designed for Domestic, Industrial, Agricultural, Small Farm and Garden purposes. It can draw water from greater depths from 100 feet to 400 feet. The Bore well compressor Pumps are Splash Oil lubricated, air-cooled, and reciprocating. The compressor doesn’t need to be installed on the bore well. It can be installed at a distance from the Bore well.
| Head Range | Upto 400feet |
| Cylinders | 1 |
| Voltage Range | 200 / 240 V |
| HP range | 1 to 1.5 HP |
| Speed | 1440 |

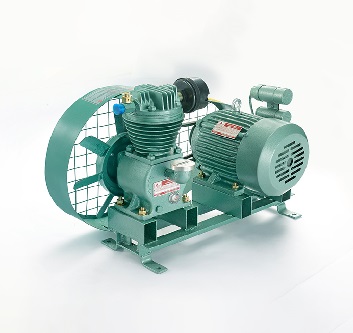

ABC – Aquatex Borewell Compressor Pump
BOREWELL COMPRESSOR PUMPS are designed for Domestic, Industrial, Agricultural, Small Farm and Garden purposes. It can draw water from greater depths from 100 feet to 650 feet. The Bore well compressor Pumps are Splash Oil lubricated, air-cooled and reciprocating type. It is not necessary that the compressor should be installed on the bore well. It can be installed at a distance from the Bore well.
| Head Range | Upto 650feet |
| Working Pressure | 9 Kg/ cm² |
| Voltage Range | 200 / 240 V |
| HP range | 1 to 2.0 HP |
| Motor Speed | 1440 RPM |
- Vertical multistage Centrifugal Inline Pump, Immersible Pump and Horizontal Multistage pumps designed for pumping of cooling lubricants to machine tool, condesate transfer and similar applications.
- Vertical multistage and Horizontal multistage pumps are equipped with a mechnaical seal to provide highly efficient performance.
- The Pump comes in various sizes and have different number of stages to provide the flow, pressure and the length required.
- The Mounting Dimensions is compatible with conventional Models.
- The pump equipped with a efficient motor (IE2 / IE3) for energy saving.
- Wide performance range and high reliability.
- Drsigned for continuous operation.
- Compact Design.
- Noise free operations.
- Easy maintenance.
- Fitted with cartridge mechanical seal for easy removal and superior sealing between water end and motor.
- Turning Machine.
- Chilling.
- Milling Machine.
- Grinding Machine.
- Wire EDM
- Cooling Units
- Part Washing.
- Condensate System.
- Pressure Boosting System.
- Irrigation & Agriculture.
- Sprinkler Irrigations.
LIST OF PRODUCTS
ATH 10
Vertical multistage Centrifugal Inline Pump, Immersible Pump and Horizontal Multistage pumps designed for pumping of cooling lubricants to machine tool, condesate transfer and similar applications.Vertical multistage and Horizontal multistage pumps are equipped with a mechnaical seal to provide highly efficient performance.
| Model Range | 1 to 18 m3/h |
| Power Range | 0.5 HP to 7.5 HP |
| Head Range | 0 - 23 bar |
| Discharge range | 0.7 to 18m3/h |
| Efficieny Class | IE2 / IE3 |
| Ingress Protection | IP54, IP55 |
| Insulation Class | F |
- Hydro Pneumatic Systems is designed to used in large scale pressure boosting operations in apartments, colonies, commercial high rise buildings, Office building, hotels and others.
- Hydro- Pneumatic systems consist of 2 to 6 High Pressure Multistage Pumpsets, Suction and Delivery manifolds with valves, Base Frame and suitable control panel.
- The Pressure Tanks are connected to the delivery manifold to reduce the no. of starts and stops of pumpsets.
- Based on requirement, the Hydro Pneumatic Systems are available with constant speed control panel and variable speed control panel.
- Efficient Motors.
- High Quality Compressors.
- Our High HP pumpsets can be used with to pump water from two bores simultaneously.
- High Quality Air distributor creating fine air bubbles.
- High grade belt to withstand wear tear under filed conditions.
- Suitable for Borewell Pumping for homes and offices.
- It can also be used for Gardening purposes.
LIST OF PRODUCTS

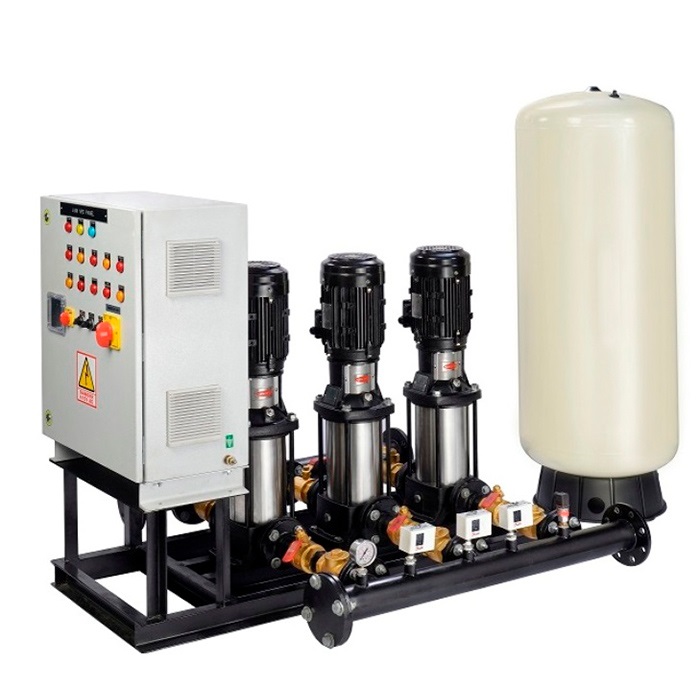

APS MULTISTAGE
APS Hydropnuematic system with Vertical multistage pumpsets is designed to deliver water continuously at all outlets in all Floors of High Rise Apartments and Commercial Buildings with uniform pressure .
| Power : | Single Phase: 0.5HP to 2HP, Three Phase: 0.5HP to 25HP |
| Voltage : | Single Phase: 220 – 230V, Three Phase: 380 – 415V |
| Head : | Max. 350m |
| Disc : | Max.30m3/hr |
| Operating Pressure: | Upto 35bar |

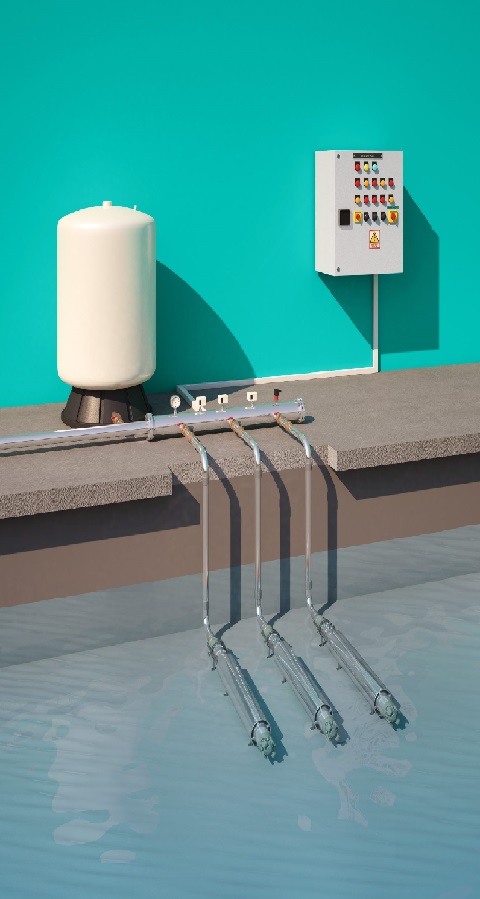

APS SUBMERSIBLE
APS Hydropnuematic system with Borewell Submersible pumpsets is designed to deliver water continuously at all outlets in all Floors of High Rise Apartments and Commercial Buildings with uniform pressure .
| Power | Single Phase: 0.5HP to 2HP, Three Phase: 0.5HP to 25HP |
| Voltage | Single Phase: 220 – 230V, Three Phase: 380 – 415V |
| Head | Max. 350m |
| Disc | Max.30m3/hr |
| Operating Pressure | Upto 35bar |
- Constant & Variable Speed Pressure boosting in Homes, apartments, Small commercial & industrial application etc…
- Irrigations in Farms & Gardens.
- Fountains.
- Hot & Cold water Circulations.
- Heavy ball bearing to take higher thrust load.
LIST OF PRODUCTS

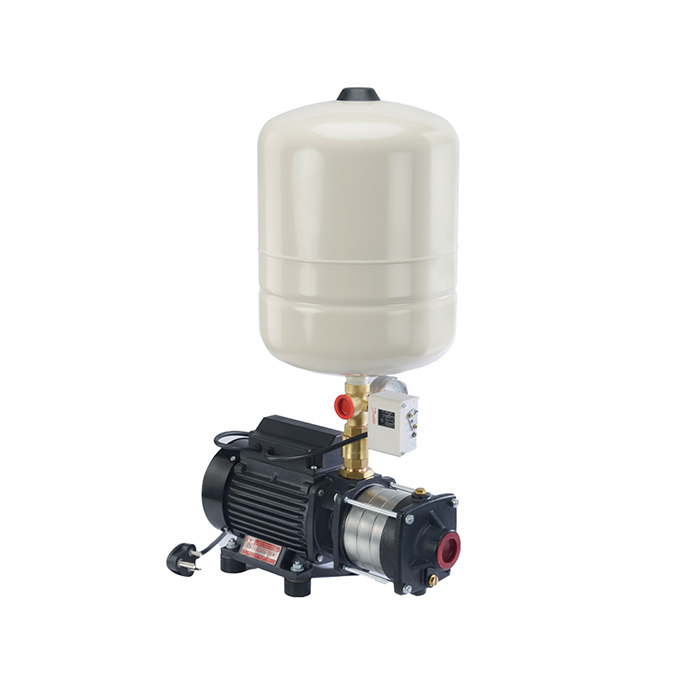

Domestic Boosters
Domestic Pressure Booster Pumps are reliable, efficient and boost the pressure in your shower, bathrooms, and kitchens.
| PRODUCT DATA | |
| Power | 0.5HP to 2HP |
| Speed | 2800 RPM |
| Head Max. | 72 M |
| Discharge Max. | 7.5m3/hr |

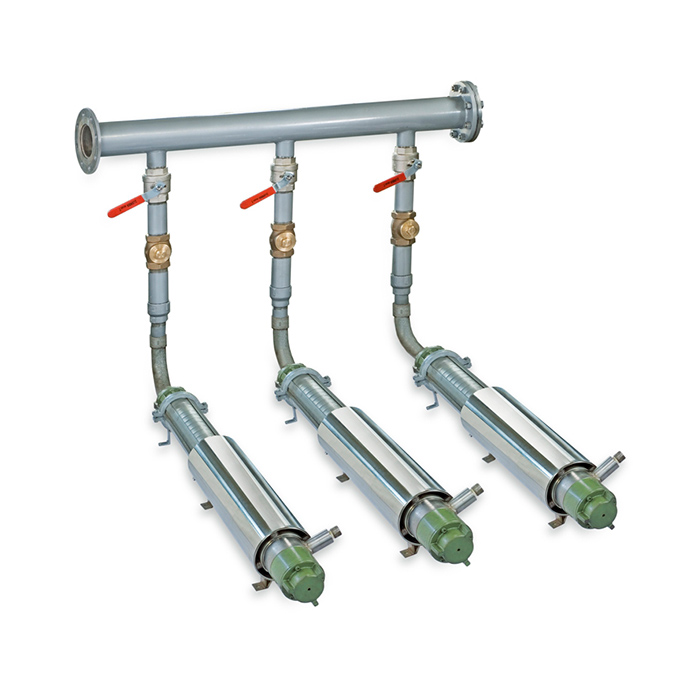

- Water Transfer System is designed to transfer water from the underground water storage to the overhead water tank with fully automatic control system to prevent dry running of pumps and prevents overflow of water.
- The system is most ideal for High Rise Apartments and Buildings.
- The air distributor is connected to a perforated delivery pipe which allows water to come in.
- Water Transfer system consists of Multiple parallel pumpsets, Suction and Delivery manifolds with Valves, Base frame and suitable control panel.
- The system is pre assembled, tested in the factory and ready for installation at site.
- Control panel controls the number of pumpsets to operate based on system discharge and Head.
- Protection from Field issues like Low / High voltage, Phase missing / reversal, unbalanced current etc.
- Dry running and overload protection with float switch operation.
- Automatic PLC allows equal running time for pumpsets.
- Timer function available to start and stop the entire system based on customer requirement.
- Water Transfer systems with multistage submersible pumpsets are suitable for negative suction sites
- Water Transfer in High rise Apartments, High rise Commercial Buildings and Row Houses in housing projects.
- Water transfer in hotels, hospitals and hostels.
LIST OF PRODUCTS
ATS
Water Transfer System is designed to transfer water from the underground water storage to the overhead water tank with fully automatic control system to prevent dry running of pumps and prevents overflow of water. The system is most ideal for High Rise Apartments and Buildings. Water Transfer system consists of Multiple parallel pumpsets, Suction and Delivery manifolds with Valves, Base frame and suitable control panel.
| Power | Single Phase: 0.5HP to 2HP,Three Phase :0.5HP to 100HP |
| Voltage | Single Phase: 220 – 230V,Three Phase: 380 – 415V |
| Head | Max. 350m |
| Disc | Max.150m3/hr |
| Operating Pressure | Upto 35bar |
- Double mechanical seals with hard sealing facts in the oil chamber prevent the sewage water entry into oil chamber and dry moto space.
- Resin impregnated cast iron parts prevents the sweating of water inside the motor.
- Single vane impeller does not clogged even when solid, lumpy and fibrous wastes are pumped.
- Single vane impeller does not clogged even when solid, lumpy and fibrous wastes are pumped.
- Rigid cast iron volute casting is fitted with a replaceable wear ring.
- Hydro pneumatic tanks of different capacities are offered to suit the applications.
- Pumping sewage water from septic tanks.
- Pumping Municipal sewage water from sewage treatment plants.
- Pumping waste water with raw sludge containing non abrasive solids from Hotels and Commercial Buildings.
- Draining water with solid foreign matters from basement of High-rise buildings and subways.
- Draining water with sediments from construction sites, mines and tunnels
LIST OF PRODUCTS

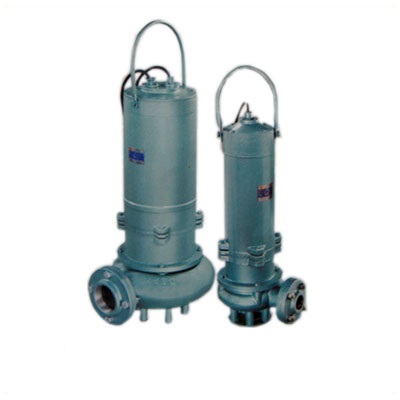

ASP Series
| PRODUCT DATA | |
| Discharge Range | Upto 25 litres/sec |
| Head Range | Upto 28 m |
| Solid size | Upto 60 mm |
| Delivery Size | 1′ to 3′ Bsp |
| Operating Pressure | Max. 30 bar |
| TECHNICAL DATA | |
| Power | 0.37 kw to 1.5 kw in single, phase 1.5 kw to 7.5 kw in three phase |
| Speed | 2900 rpm |
| Degree of protection | IP68 |
| Insulation class | class ‘F’ |
| Power supply | Single phase 230v,50Hz AC supply,Three phase 380v,50Hz AC supply |
- These pump sets are used for the purpose of removing water from a flooded area.
- It is generally used in homes and businesses during storms, floods and in mines to remove underground water.
- Some models also come with cutters that cut larger semi-solid materials to smaller and more manageable sizes.
- When in operation, the pump sets create a vacuum which sucks the nearby solids and liquids and ejects them out through the discharge pipe.
- Dual Mechanical Seals to prevent water leakage.
- Impeller and Casing are chemically coated to improve life and performance.
- High-Grade Class ‘F’ Insulation to greater heat protection while running.
- Oil lifters extend the life of mechanical seals by providing efficient lubrication and cooling.
- Industrial Waste Water Removal.
- Farming and Animal Husbandry Waste Removal.
- Domestic Home Waste Removal.
LIST OF PRODUCTS

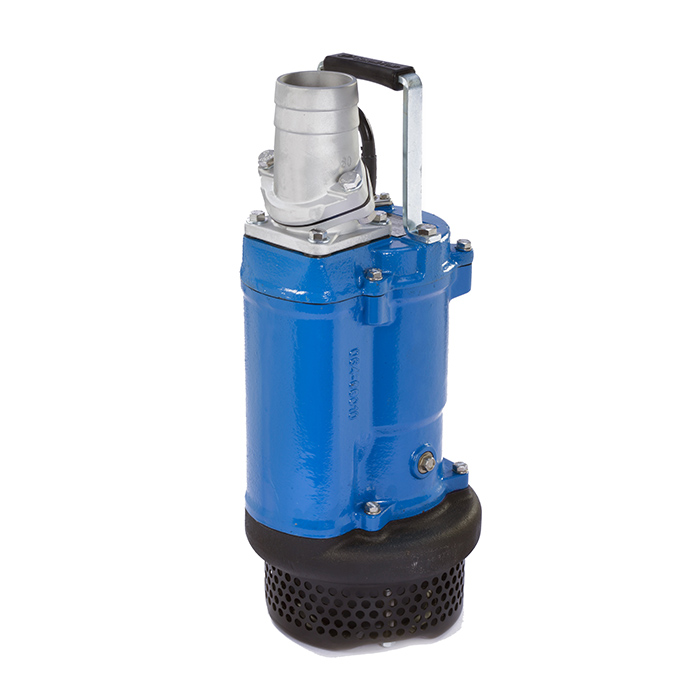

CDT
CDT high performance construction dewatering pumps can take on the toughest construction sites by virtue of their rugged cast iron construction and superior design.
| Power : | 2HP to 7.5HP |
| Voltage : | 380V, 50Hz |
| Head : | Max. 40m |
| Disc : | Max. 96m3/hr |
| Solid handling size: | Max. 8.5mm |

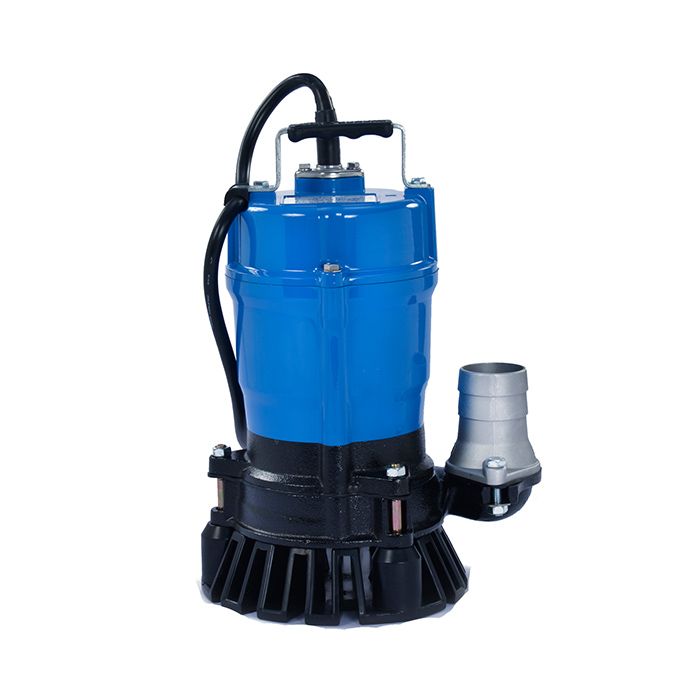

CDS
CDS pumps have the unique characteristic of draining water down to the very bottom.
| Power | 0.5HP & 1.0HP |
| Voltage | Single Phase : 220V, 50Hz Three Phase: 380V, 50Hz |
| Head | Max. 16m |
| Disc | Max. 18m3/hr |
| Solid handling size | Max. 7mm |

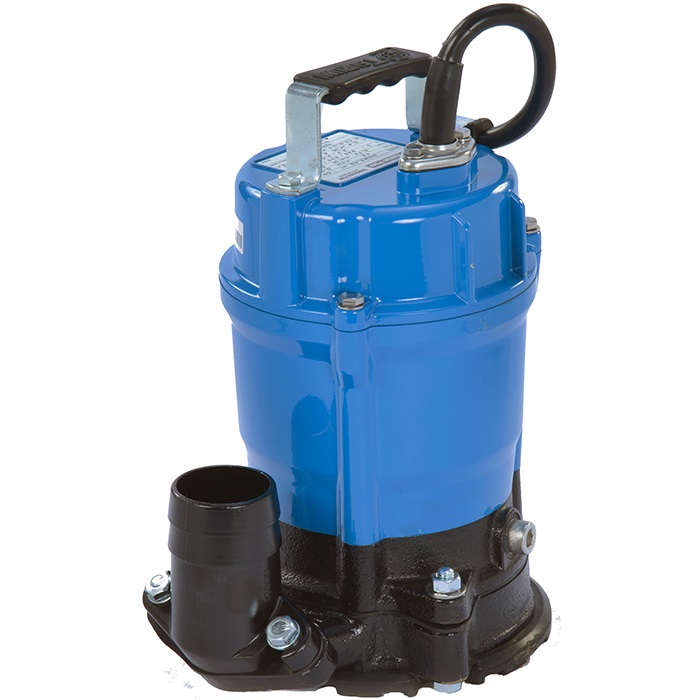

CRDS
CRDS pumps have the unique characteristic of draining water down to the very bottom
| Power : | 0.5HP |
| Voltage : | 220V |
| Head : | Max. 12m |
| Disc : | Max. 6.6m3/hr |
| Solid handling size: | Max. 3mm |

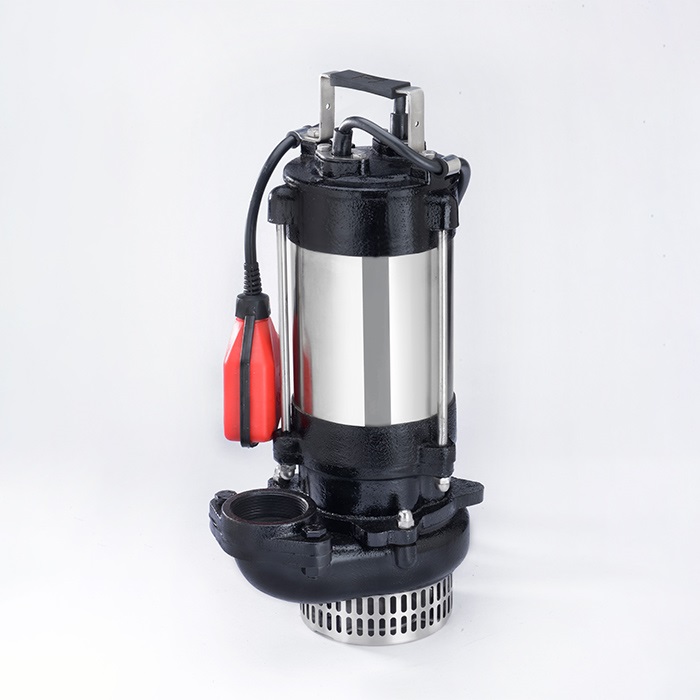

ADP
ADP Drainage pumps are rigid pumps that are suitable for draining flood water and stagnant water from basements and stormwater drains.
| Power : | Single Phase: 0.5HP to 3.0HP Three Phase: 1.0HP to 3.0HP |
| Voltage : | Single Phase : 220V, 50Hz Three Phase: 380V, 50Hz |
| Head : | Max. 28m |
| Disc : | Max. 42m3/hr |
| Solid handling size: | 8mm to 10mm |

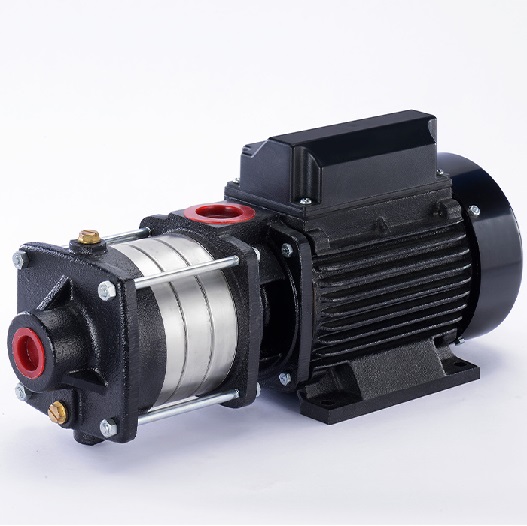

- AHS Series Horizontal Multistage centrifugal pumps are the products from AQUA GROUP- Asia’s only totally integrated pump manufacturing group of companies.
- These are a type of Pumpsets in which multiple diffuser and impeller sets are mounted on top of the other and connected via a common shaft.
- Each set of diffusers and impellers is called a stage. Pumpsets having more than two stages are called multistage pumpsets.
- Multistage Pumps which are built horizontally are called Horizontal Multistage Pumpsets.
- Efficient Motors.
- Available in Corrosion resistant Stainless Steel.
- Hot water application pumps are also available.
- Dynamically balanced rotor ensures noiseless operation.
- Industrial Water Supply.
- Farming and Animal Husbandry.
- Boiler Feed Applications
- Pressure Boosting system
LIST OF PRODUCTS
AHS Series
AHS Series Horizontal Multistage centrifugal pumps are the products from AQUA GROUP- Asia’s only totally integrated pump manufacturing group of companies.These are a type of Pumpsets in which multiple diffuser and impeller sets are mounted on top of the other and connected via a common shaft.
| Power | 0.5HP to 2HP |
| Voltage | 220V,50hz. |
| Head | Max. 72m |
| Disc | Max. 7.5m3/hr |
| Speed | 2800RPM |
- These are monoblock pumpsets with self priming characteristics which are generally used in homes for lifting water from underground sump to Over head Tank.
- The main feature of the pumpset is that it does not require priming each time when it is started.
- Due to its design, a self priming pump creates a vacuum space which sucks both air and water from the bottom.
- The air is vented out continuously till the water level reaches the pumpset.
- Compared to standard centrifugal Pumps, these pumps can operate without manual assistance and do not require a foot valve.
- They are basically a centrifugal pump with a chamber or a mechanism that creates the necessary vacuum for priming.
- Rugged single-phase TEFC motor with dynamic balanced rotor.
- Suitable for 200- 240 V, 50 Hz power supply.
- Rigid cast iron motor frame and pump casing.
- Highly wear-resistant bronze impeller.
- Carbon vs. ceramic mechanical seal.
LIST OF PRODUCTS
HCS SP Series
Rugged and Reliable Self Priming Centrifugal Pumps. Suitable for pumping water from sump to over head tank High efficiency with lower power consumption than the other types of small self priming pumps.
| PRODUCT DATA | |
| HP Rating | 0.5 to 1.0 HP |
| Speed | 2900 RPM |
| Head Max. | 21 M |
| Discharge Max. | 160 LPM |
SCM 11 Series
Rugged and Reliable Self Priming Centrifugal Pumps where the water requirement is fairly high. High efficiency with lower power consumption than the other types of small self-priming pumps.
| PRODUCT DATA | |
| HP Rating | 1.5 HP |
| Speed | 2900 RPM |
| Head Max. | 18 M |
| Discharge Max. | 410 LPM |
FRH Series
Convenient, reliable, self-priming pumps with nominal discharge for the household. These pumps are suitable for portable applications.
| PRODUCT DATA | |
| HP Rating | 0.5 HP |
| Speed | 2900 RPM |
| Head Max. | 30 M |
| Discharge Max. | 47 LPM |
DMS, DMS N Series
Convenient, rugged and reliable pumps for the household, they have proven their performance over many decades. This pump has got good self priming action even with air entrapped.
| PRODUCT DATA | |
| HP Rating | 0.5 & 1.0 HP |
| Speed | 1420 RPM |
| Head Max. | 36 M |
| Discharge Max. | 59 LPM |
- Jet Pumpset works on the idea of supplying pressurized jet of water to suck the surrounding water and lift it to the surface level from deep wells.
- The working of a jet pumps depends on two main components a nozzle and a venturi.
- The jet nozzle receives pressurized water from the pump, as the water passes through the jet nozzle, the speed of the water increases while the pressure decreases. (Similar to closing the opening of garden hose creates squirting action).
- The fast moving water jet along with the low pressure generated is what created suction around the nozzle.
- The surrounding water is sucked in and carried along with the fast moving water jet.
- However, in order for this jet to lift the water to the surface, it needs a venturi.
- The venturi reduces the water speed and pressurizes the water and lifts is to the pump on the surface.
- Rugged Single Phase TEFC motor with dynamic balanced rotor.
- Suitable for 180V – 240 V, 50 Hz power supply.
- Suitable for 180V – 240 V, 50 Hz power supply.
- Sturdy, balanced bronze impeller.
- A range of jet units for varying well diameters and suction lifts.
LIST OF PRODUCTS

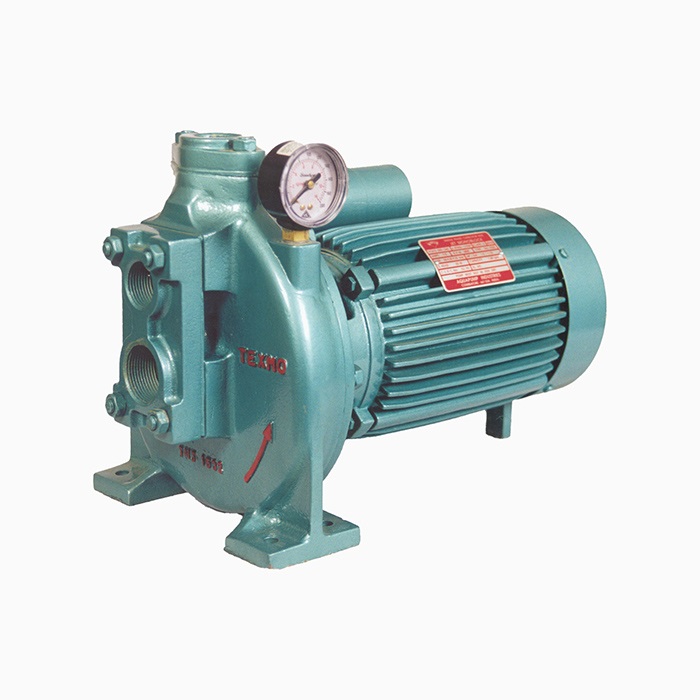

TVJ, THJ, TVJ N Series
TVJ, THJ, TVJ N Jet Monoblocks are capable of pumping water from borewells and openwells and offer an economical alternative when water requirements are modest. Available in both side suction and centre suction models.
| PRODUCT DATA | |
| Power | 0.5 to 2.0 HP |
| Speed | 2850 RPM |
| Head Max. | 61 M |
| Discharge Max. | 2500 LPH |

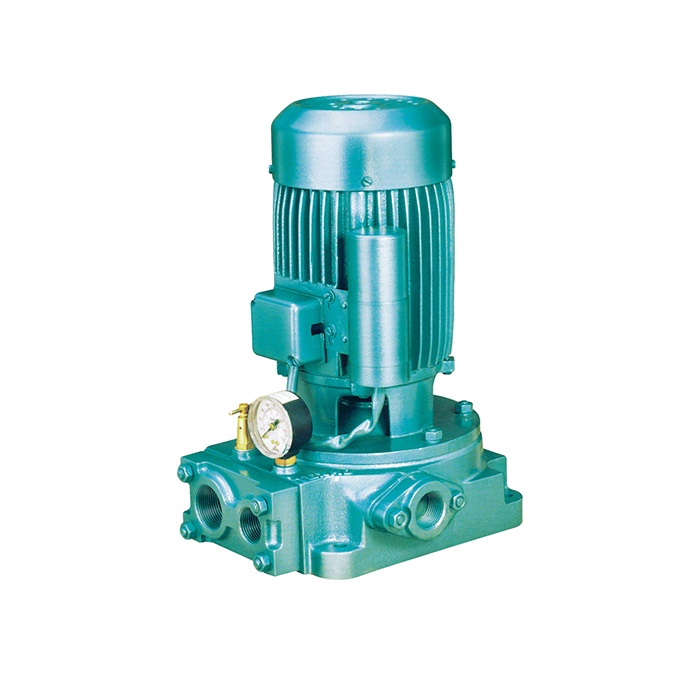

TVJ 2S Series
TVJ2S Two stage Jet Monoblocks are capable of pumping water from borewells and openwells and offer an economical alternative to compressor and submersible Pumps.
| PRODUCT DATA | |
| Power | 1.0 to 2.0 HP |
| Speed | 2850 RPM |
| Head Max. | 77 M |
| Discharge Max. | 1200 LPH |
- TSJ Single phase Self-priming Monoblock Pumpsets are designed for easy installation, simple maintenance and trouble-free service.
- Jet Pumpset works on the idea of supplying a pressurized jet of water to suck the surrounding water and lift it to the surface pump.
- The working of jet pumps depends on two main components a nozzle and a venturi.
- The jet nozzle receives pressurized water from the pump, as the water passes through the jet nozzle, the speed of the water increases while the pressure decreases.
- The fast-moving water jet along with the low pressure generated is what created suction around the nozzle.
- Creates more suction compared to other pump models.
- In-built non-return valve.
- Carbon vs Ceramic mechanical seal.
- Suitable for Low-voltage applications.
- Pumping water from borewells with suction depth lower than 30ft.
- Car Washing
- Overhead storage tank filling.
- Domestic water pressure applications.
LIST OF PRODUCTS

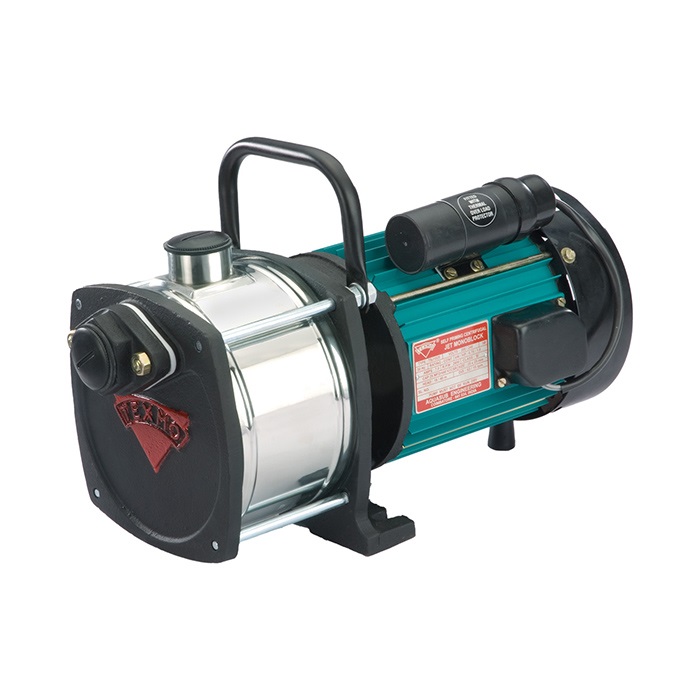

TSJ
TSJ Single phase Self-priming Monoblock Pumpsets are designed for easy installation, simple maintenance and trouble-free service. Jet Pumpset works on the idea of supplying a pressurized jet of water to suck the surrounding water and lift it to the surface pump.
| Power | 0.5HP to 1.0HP |
| Voltage | 180V- 240V |
| Head | Max. 40M |
| Disc | Max. 60LPM |
| Speed | 2880 RPM |
- Pressure Boosting System are designed to provide constant pressure water consistently at all outlets.
- The System feeds water directly from the water source or sump to the outlets.
- Pressure Boosting System consists of 2 to 6 High Pressure Multi Centrifugal Pumpsets, Suction and Delivery Manifolds with Valves, Base frame and suitable Control Panel.
- Constant Speed Control Panel.
- Variable Speed Control Panel.
- Water Supply.
- Industrial.
- Irrigation.
LIST OF PRODUCTS
APS Series
Pressure Boosting System are designed to provide constant pressure water consistently at all outlets. The System feeds water directly from the water source or sump to the outlets.
| TECHNICAL DATA | |
| Power Input Range | 1.5 kw to 15 kw |
| Speed | 2900 rpm |
| Degree of Protection | IP 55 |
| Insulation Class | F |
| Power Supply | 380 - 415 V |
| PRODUCT DATA | |
| Flow rate | upto 60 m3/hr |
| Head Range | upto 180m |
| Liquid Temperature | -15 deg C to 120 deg C |
| Inlet Pressure | Upto 20 bar |
| Operating Pressure | Max 30 bar |
- TEFC motors are characterised by ruggedness and efficiency.
- Electric Motors convert electrical energy from the grid to mechanical energy.
- Electric Motors works based on Flemings Left hand rule, i.e when current passing through a wire goes through a magnetic field perpendicular to its direction, the wire through which the current passes experiences a force whose direction is perpendicular to direction of both the current and the magnetic field.
- Electric Motor is coupled to a pump or machine in which the motor is the driver and the pump or machine is the driven.
- Single Phase TEFC squirrel cage induction motor with dynamic balanced rotor.
- Suitable for 200 – 240V, 50 Hz power supply.
- Available with 2 Pole, 4Pole.
- Available with a class insulation.
- Rigid cast iron construction.
- Frame sizes and shaft extension as per ISI and IEC specifications.
LIST OF PRODUCTS

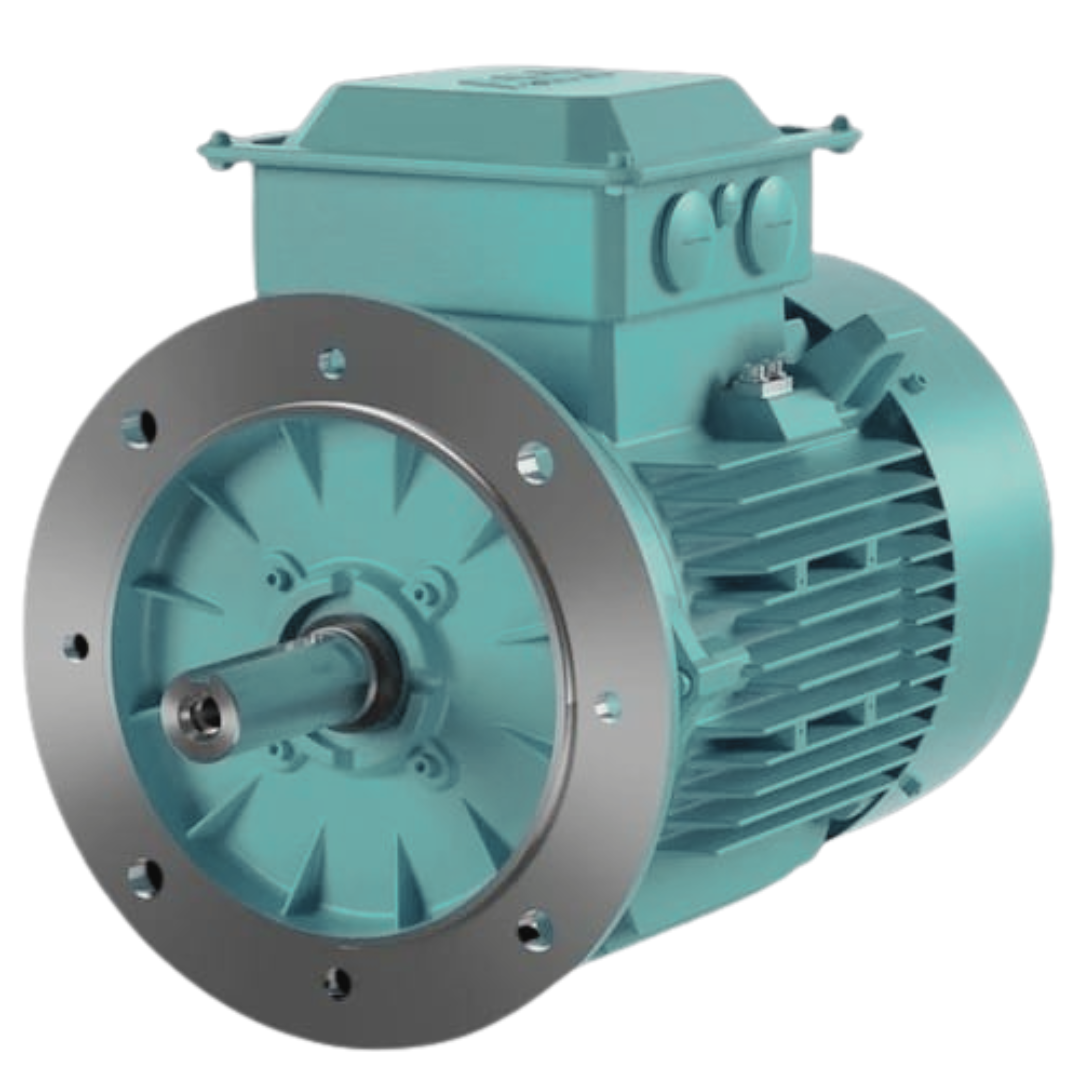

3 Phase, Flange Mounted Motors
AQUA GROUP is one of the leading manufacturers of electrical motors in India. We manufacture a wide range of motors 100% In-house under the brand name – AQUATEX. AQUATEX motors are the preferred choice of various industries due to their performance and reliability. AQUAGROUP is committed to manufacturing excellence and providing world-class quality products.
| Poles | 2 |
| Power Range | 2.20Kw |
| Duty | Continous |
| Voltage | 415V |
| Phase | 3 |
- Water extraction from all sizes of bores.
- Irrigation systems for Agriculture including Drip and Sprinkler systems.
- Pressure boosting applications.
- Domestic water supply to large residences and multi-storied apartments.
- Water supply to commercial establishments like Hotels, Lodges and Hospitals.
- Dewatering of mines.
- Industrial water supply.
LIST OF PRODUCTS
Solar Submersible Pumpsets
SOLAR SUBMERSIBLE PUMPSETS are easy to install, noise-free, efficient and require minimum maintenance. A wide range of pumps are available to meet solar pumping requirements and MNRE standards. Motors are water-lubricated and feature robust thrust bearings. Good quality materials are used to obtain a reliable life and provide maintenance-free service.
| Power | 0.5 to 30.0 HP |
| Bore size | 3”,4″,5″,6″,7″ & 8″ |
| Head | Max. 250 M |
| Head | Max. 1600 LPM |
| Speed (rpm) | 2900 RPM |
- Deep or shallow openwell pumping with suction lift.
- River and canal lift irrigation pumping.
- Pressure boosting applications.
- Public water supply to large residence areas and multi-storied apartments.
- Water supply to commercial establishments like Hotels, Lodges and Hospitals etc.
- Dewatering of mines.
- Industrial water supply and transfer.
- Fountains.
LIST OF PRODUCTS

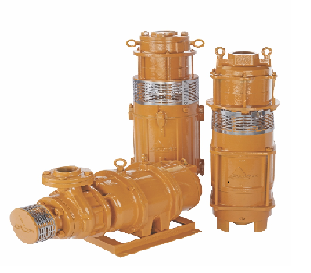

Solar Openwell Pumpsets
SOLAR SUBMERSIBLE PUMPSETS are easy to install, noise-free, efficient and require minimum maintenance. A wide range of pumps are available to meet solar pumping requirements and MNRE standards. Motors are water-lubricated and feature robust thrust bearings. Good quality materials are used to obtain a reliable life and provide maintenance-free service.
| Power Range: | 3.0 to 30.0 HP |
| Voltage : | Voltage |
| Head: | Max. 90 m |
| Disc : | Max. 2640 lpm |
| Speed (rpm) : | 2900 |
- Deep or shallow openwell pumping with suction lift.
- River and canal lift irrigation pumping.
- Sprinkler and drip Irrigation systems
- Filter point pumping.
- Industrial water supply and transfer.
- Cooling water circulating systems.
- Pressure boosting systems.
LIST OF PRODUCTS

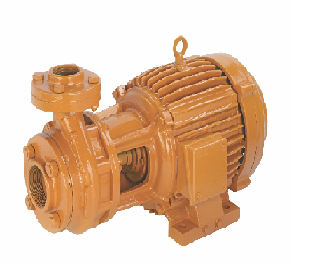

Solar Surface Monoblocks (AC)
Solar-powered Monoblock Pumps are durable, reliable, and designed to withstand tough conditions and high suction lifts. A wide range of monoblocks is available, suitable for different operating points.
| Power | 1.5 to 30.0 HP |
| Voltage | 340V- 440V, 50Hz, Three-phase AC Power supply |
| Head | Max. 95 m |
| Discharge | Max. 2600 LPM |
| Speed (RPM) | 2900 |
